CNC KJ1 woodworking drill bits

Short Description:

Technical Details:

Premium quality super-Tungsten Carbide+Strength Steel
2 spiral cutting edges(Z2)
Provide excellent finish on bottom side of the workpiece
Upward chip ejection

Application:

Used on boring machines alone and dowel drilling devices .

Use for drilling through holes in solid wood ,wood composites ,MDF , plywood ,hard and soft wood.

KJ-1 drill bits are our flagship products which are made with 5-axis machining machines.

KJ-1 drill bits are composed of tungsten carbide drill tip, tungsten carbide drill body and steel shank. As for the welding method, KJ-1 also adopts the same plug-in welding as TCT. Because KJ-1 drill bits needs to bear more torque, plug-in welding can increase the welding area to ensure the overall stability of the drill bit. Similarly, in order to meet different processing needs, we also use carbide different from KJ-1 to KJ-2 and ZY.

Send email to us

Product Detail

Production capacity of YASEN factory

Product Tags

Product description

What KJ-2 and ZY bits can do, KJ-1 can do. And KJ-1 have the longest life of these three types.

The angle of conventional KJ-1 drill bits is also different from that of KJ-2 and ZY.

And for most shapes of bits, KJ-1 can be customized. So if you have other overall design requirements for the drill bit, KJ-1 can meet them. KJ-1 is more durable and it is suitable for mini size. Because of more tungsten carbide, KJ-1 can fit for many special work.

For which size out of 2.5-8, we also supply KJ-1 drill bits for solid carbide that the whole bit is carbide include shank.

KJ-1 Drill bits main work for MDF、chipboard、laminated and any other wood types.

And KJ-1 drill bits are made by 5-axis machining center, so these bits have best accuracy. If you have demand for holes’ accuracy, I think KJ-1 bits will be your best choice.

We also accept KJ-1 step drill bits’ customized requirements. Even for some models, KJ-1 is more affordable.

Many customers choose to use KJ-1 on the machining center, which can give full play to its functions.

If you have high standards in service life, product accuracy, processing and efficiency, I think KJ-1 drill bits will meet your needs.

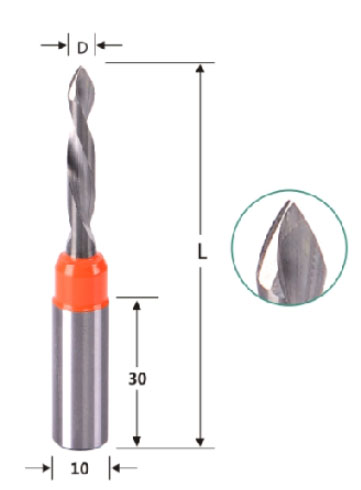

Specifications

Number	Rotation direction/R	Blade diameter/D	Blade length/L
20101/20201	R/L	2	57/70
20102/20202	R/L	2.5	57/70
20103/20203	R/L	3	57/70
20104/20204	R/L	3.5	57/70
20105/20205	R/L	4	57/70
20106/20206	R/L	4.5	57/70
20107/20207	R/L	5	57/70
20108/20208	R/L	5.5	57/70
20109/20209	R/L	6	57/70
20110/20211	R/L	8	57/70

Manufacturing process

1 . Fine particles of tungsten steel round bar and low temper process ensure the quality of weld.

2 . Epsilon-type blade edge and the negative rear angle design of crossed.

3 . The four axis cnc machining center tool guarantees the accuracyeffectively by the one-step molding technology.

Specifications

Number	Rotation direction/R	Blade diameter/D	Blade length/L
40101/40201	R/L	2	57/70
40102/40202	R/L	2.5	57/70
40103/40203	R/L	3	57/70
40104/40204	R/L	3.5	57/70
40105/40205	R/L	4	57/70
40106/40206	R/L	4.5	57/70
40107/40207	R/L	5	57/70
40108/40208	R/L	5.5	57/70
40109/40209	R/L	6	57/70
40110/40211	R/L	8	57/70

Manufacturing process

1 . Fine partides of turst steel round ber and low temperature weding process ensure the qualty of weld.

2 . v-lype blade edge and fast speed of drilling ensure the artifacl does not colapse.

3 . The five axis cnc machining center too guarantees the accuracy effectively by the one-step molding technoloty.
